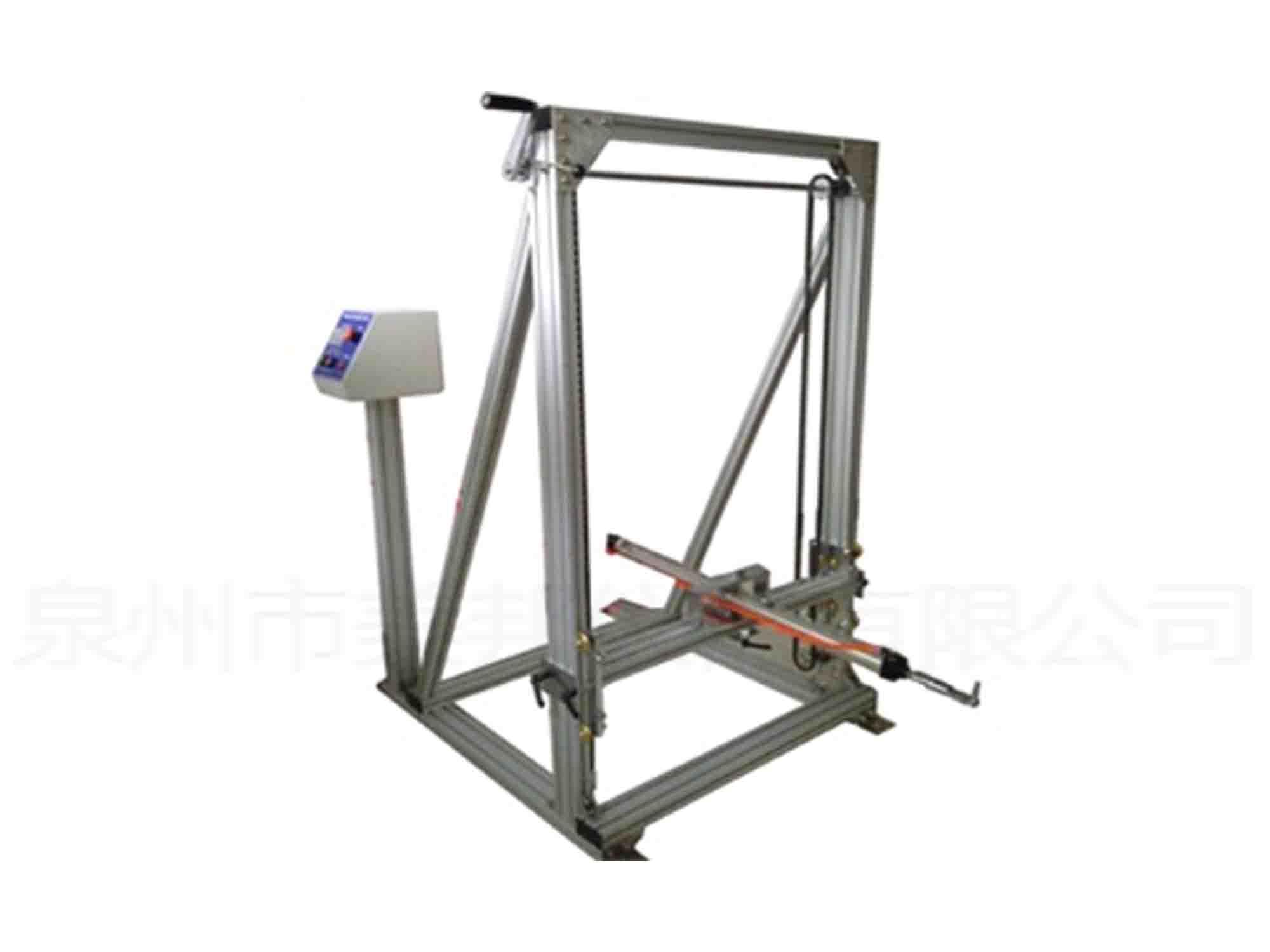

It is used to test the durability of furniture cabinet door.

QB/T 2189 、GB/T 10357.5

The hinge door and finished furniture door are connected with the instrument to simulate the frequent use of the door. The door is repeatedly opened and closed. After a certain number of cycles, check whether there is any damage or other influence on the hinge. It can be tested in an installed product and can be firmly connected with various pull doors and side sides and should not produce any force affecting the test. Detection of moving parts can control the pumping speed and cable, according to the need in 0.25m/S ~ 2m/S. The adjustment of test equipment pulling length angle can be adjusted according to actual detection requirements, adjustable length of 100mm ~ 500mm, 0 ~ 90 degrees angle. The opening and closing force with the auxiliary measuring instrument for display, can open and close the drawer time stop adjustment, can set the number of test machine. The whole machine is beautiful, it should not be exposed, and it is easy to operate. At the same time, the drawer and the door of the cabinet are configured.
